Single Channel : Part # R051-018


The Single channel CDI is a compact single output Capacitive Discharge Ignition system that is designed to be triggered by an ECU and output to an external CDI coil.

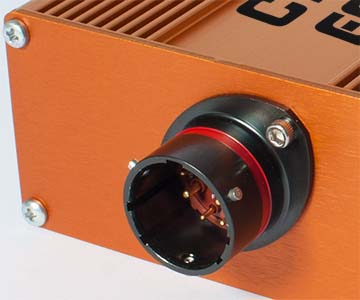

The enclosure is extruded 6061 aluminium that is environmentally sealed and features an Autosport 12 pin main connector.

Features

The CDI has the following features:-

  • Compact design
  • High primary output
  • Low power consumption
  • High RPM operation
  • Transient protected
  • Reverse polarity protection
  • Tachometer output
  • Low Voltage operation
  • CDI temp output
  • 4 Status LEDS's

Design

The Single Channel CDI utilizes a proprietary high efficiency transformer and power stage design that allows full operation down to 10 volts.

Its compact design features an integrated heatsink with mil-spec connector allowing for a small lightweight package with high output.

The sleek design features 4 status LED indicators on the rear cover labeled left to right as follows:-

  1. 1. Switched 12v
  2. 2. Battery Power
  3. 3. 550v charging
  4. 4. Input Trigger

Performance Data

  • 14,500 max RPM range
  • 8A load at 10,000 rpm
  • 550 volts primary
  • 55kV secondary
  • 205mj spark energy
  • Rising edge trigger

Applications







Operational

Enclosure: Extruded 6061 Aluminum
Construction: CMOS surface mount design
Environmental: Environmentally sealed
Connector: Autosport 12 pin
Dimensions: 4.5" x 3.85" x 1.75"
Weight: 0.75 lbs
Power Supply: 10 to 18 volts transient protected
Power Consumption: 0.5 watt @ 14 volts
Operating Temp: -40 to +85 deg C continuous
EMI Protection: Exceeds 100V/m >1GHz

Contact

For further information on this and other products please contact us directly at sales@efitechnology.com.
