The Data Analysis application allows display of logger data in a variety of formats. Data from different outings, laps and channels can be overlaid for comparison.
Rapid assessment of driver inputs, engine and chassis performance can be made instantly and assists in optimizing the chassis and engine.
Version 9.0 has the following features:-
Logger data is managed using the system file folder window that displays the current outing, laps and channels. Multiple outings and/or laps can be added to the file folder for overlays.

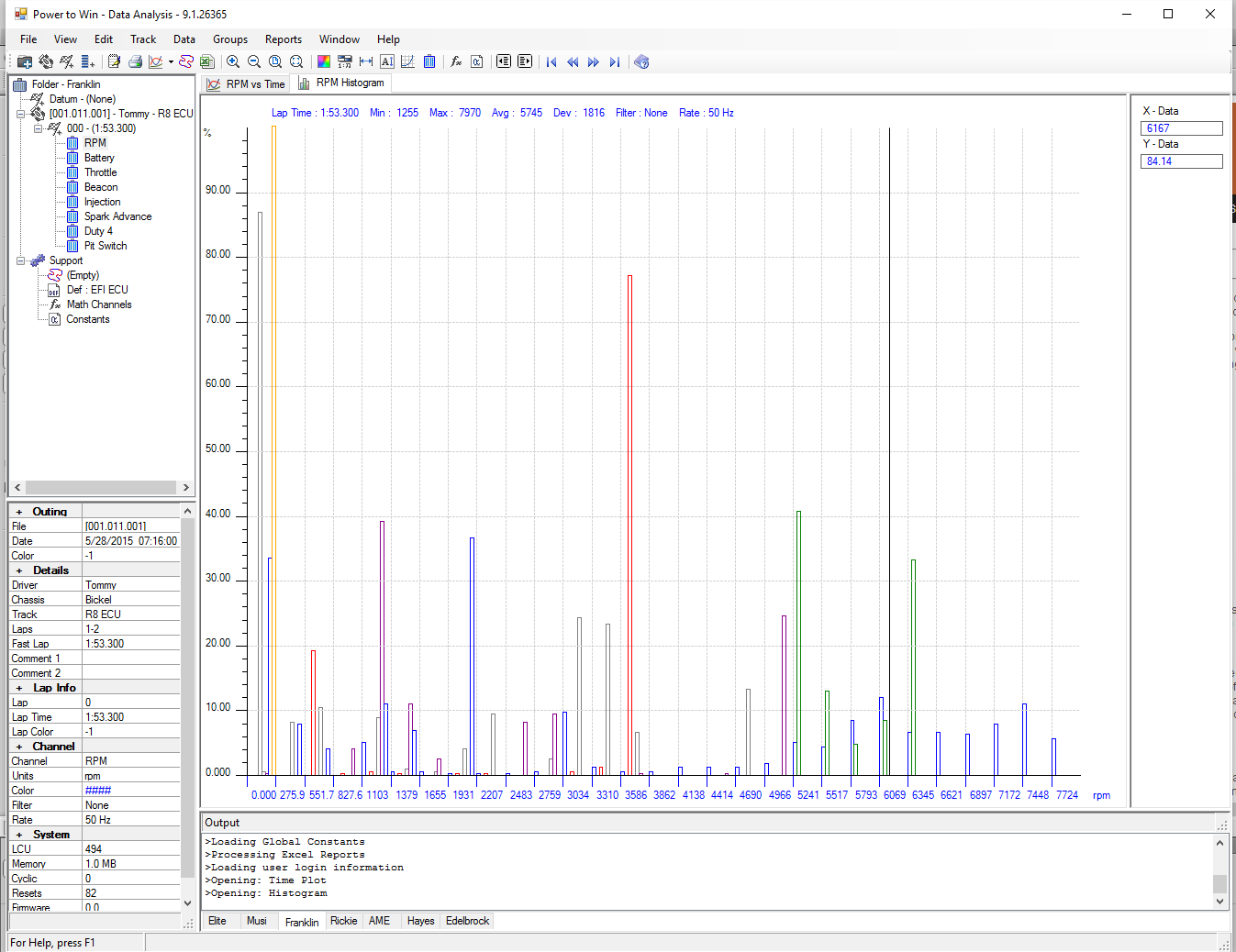

Logger data can be analyzed with a variety of graphic and numeric displays. Time, Distance, Histogram, XY and Frequency Plots are all supported. Data can also be viewed numericly.
Complex math channels can be created using the advanced math channel editor. Understeer gradient, shock velocity, brake bias and aerodynamic balance are some examples. Math channels can be nested up to 8 levels for complex functions.
Track mapping is suppopred using Lateral G, Gyro or GPS data. Once a track map has been created data can from different laps can be overlaid for comparison. The track map is also used by the Graphic reports.
A selection of digital filters is available for posty processing logger data. Low-pass, High-pass, Band-pass, Band-reject and Averaging are all supported.
The Report editor allows channels to be added to a report which are synced with the current data set and automatically exported to an excel sheet. Lap, Event, Split, Glocal and Track repors are all supported.
The integrated help system provides a wealth of information on the topics found in the Power to Win programs. Task-specific help is often available right from where you're working by pressing the F1 key
