Junction Box : Part # R073-044


The Logger Junction Box is an analog channel multiplexer that adds inputs to any of the EFI Technology data Loggers. The enclosure is Billet 6061 aluminium that is environmentally sealed and features an Autosport connector.

It comes as standard with 8 x 0-5 volt analog inputs but can be configured with various combinations of strain gauge or thermocouple amplifiers.

Features

The Junction Box:-

  • Billet 6061 housing
  • Autosport connectors
  • 8 Analog inputs (0-5 volt)
  • 2 Digital inputs
  • Strain gauge option
  • Thermocouple option
  • RTD sensor option
  • 5 volt referenced

Operation

The 8 channel junction box allows sensors to be located remotely around the vehicle thus greatly simplifying installation and wiring.

Sensitive inputs such as strain gauge and thermocouples can be connected directly to the expansion box eliminating signal noise by reducing the cable lengths of these low signal output sensors

Up to 4 junction boxes can be connected to the Level 3 and 4 loggers allowing an additional 32 analog inputs to be added to the system.

Operational

Enclosure: Billet 6061 Aluminum
Construction: CMOS surface mount design
Environmental: Environmentally sealed
Connector: Autosport 13 pin
Dimensions: 3.5" x 1.00" x 1.25"
Weight: 0.2 lbs
Power Supply: 8 to 14 volts transient protected
Power Consumption: 0.5 watts @ 14 volts
Operating Temp: -40 to +85 deg C continuous
EMI Protection: Exceeds 100V/m >1GHz

Contact

For further information on this and other products please contact us directly at sales@efitechnology.com.

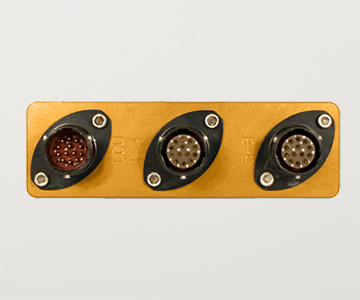

 Junction Box : Part # R073-044
X

  > Click image to enlarge


DOWNLOADS

  •   Product Data Sheet
  •   Installation Instructions
  •   Wiring Information
