IGNITION SYSTEMS

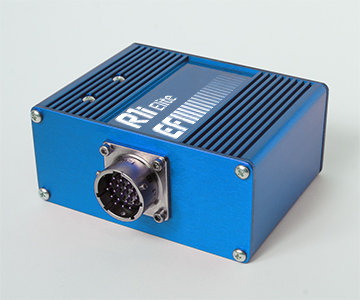

R1i : Part # R51-017

The R1i is a programmable Ignition approved by USAC, POWRi and ARDC for Midget racing engines and can direct drive up to four external coils.

The enclosure is extruded 6061 aluminium that is environmentally sealed and features a Mil-spec 19 pin main connector.

  • Enclosure: Extruded 6061
  • Outputs: Four channel
  • Voltage: 450 volts
  • Spark Energy: 105 mj/spark
  • RPM range: 13,500 rpm

see details ...

R1i Outlaw : Part # R51-024

The R1i is a programmable Ignition designed for Midget and Sprint car racing engines and can direct drive up to four external coils.

The R1i Outlaw is NOT approved for use in USAC sanctioned events.

The enclosure is extruded 6061 aluminium that is environmentally sealed and features a Autosport 19 pin main connector.

  • Enclosure: Extruded 6061
  • Outputs: Four channel
  • Voltage: 450 volts
  • Spark Energy: 105 mj/spark
  • RPM range: 13,500 rpm

see details ...

Single Channel : Part # R51-018

The Single channel CDI is a compact single output Capacitive Discharge Ignition system that is designed to drive an external CDI coil.

The enclosure is extruded 6061 aluminium that is environmentally sealed and features an Autosport 12 pin main connector.

  • Enclosure: Extruded 6061
  • Outputs: Single channel
  • Voltage: 500 volts
  • Spark Energy: 185 mj/spark
  • RPM range: 14,500 rpm

see details ...

Eight Channel : Part # R51-002

The Eight channel CDI is a compact eight output Capacitive Discharge Ignition system that is designed to drive eight external CDI coils.

The enclosure is extruded 6061 aluminium that is environmentally sealed and features Autosport 12 and 19 pin main connectors.

  • Enclosure: Extruded 6061
  • Outputs: Eight channel
  • Voltage: 500 volts
  • Spark Energy: 185 mj/spark
  • RPM range: 16,000 rpm

see details ...

Four Channel : Part # R51-011

The Four channel CDI is a compact four output Capacitive Discharge Ignition system that is designed to drive four external CDI coils.

The enclosure is billet machined 6061 aluminium that is environmentally sealed and features a mil-spec 15 pin main connector.

  • Enclosure: Billet 6061
  • Outputs: Four channel
  • Voltage: 500 volts
  • Spark Energy: 185 mj/spark
  • RPM range: 14,500 rpm

see details ...

Ten Channel : Part # R51-012

The Ten channel CDI is a compact ten output Capacitive Discharge Ignition system that is designed to drive ten external CDI coils.

The enclosure is billet machined 6061 aluminium that is environmentally sealed and features mil-spec 15 and 19 pin main connectors.

  • Enclosure: Billet 6061
  • Outputs: Four channel
  • Voltage: 500 volts
  • Spark Energy: 185 mj/spark
  • RPM range: 12,000 rpm

see details ...

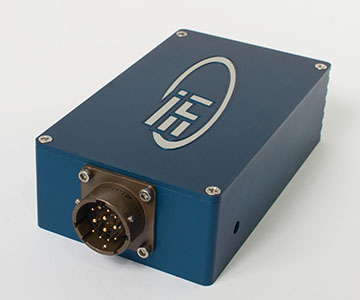

Superstock : Part # R51-0014

The Superstock CDI is a compact single output Capacitive Discharge Ignition system that is designed to output to an external CDI coil.

The enclosure is billet machined 6061 aluminium that is environmentally sealed and features a mil-spec 12 pin main connector.

  • Enclosure: Billet 6061
  • Outputs: Single channel
  • Voltage: 450 volts
  • Spark Energy: 105 mj/spark
  • RPM range: 14,500 rpm

see details ...

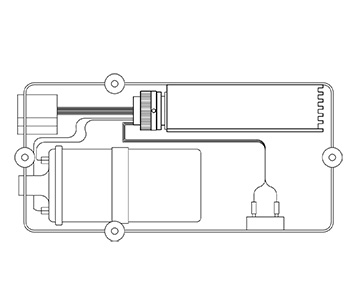

VR1 Ignition: Part # R51-0013

The VR1 is a compact Capacitive Discharge Ignition system that is designed as a direct replacement unit for the Lucas ignition box used on all Cosworth engines.

The enclosure is billet machined 6061 aluminium that is environmentally sealed and features a mil-spec 12 pin main connector.

  • Enclosure: Billet 6061
  • Outputs: Single channel
  • Voltage: 450 volts
  • Spark Energy: 105 mj/spark
  • RPM range: 12,500 rpm

see details ...
