Linear Pots


EFI manufactuers a wide range of custom linear position sensors. All sensors are tailored to each customers position measuring requirements.

The assemblies utilize the Active linear transducer with contactless technology. Spec 55 wire and Raychem heatshrink is used to terminate the sensor.

The housing are made from stainless steel that is environmentally sealed and features an DTM 3 pin connector.

Features

The sensors have the following features:-

  • Robust housing
  • Fast Response
  • Contactless technology
  • Easy mount rod ends
  • 4 sizes available
  • Excellent lifetime

Available linear ranges

Custom ranges available on request:-

Part Number Description
60-525 50 mm
60-527 100 mm
60-529 150 mm
60-531 200 mm

Operational

Housing: Stainless steel
Environmental: Environmentally sealed
Connector: DTM 3 pin
Wiring: Raychem 55 spec
Wiper assembly: Contactless
Response: 500 Hz (-3dB)
Linearity: 0.3% full scale
Life Cycles 5 x 10^6 cycles
Power Supply: 5 volts
Power Consumption: < 10 mA
Operating Temp: -40 to +125 deg C continuous

Contact

For further information on this and other products please contact us directly at sales@efitechnology.com.

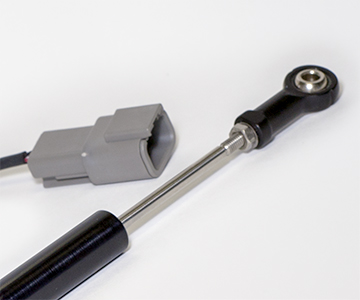

 Linear Pots
